The NoteBook Widget is a collection of "pages" that overlap each other; each page contains different information with only one page visible at a time. This widget has become more common lately in GUI programming, and it is a good way to show blocks of similar information that warrant separation in their display.
The first function call you will need to know, as you can probably guess by now, is used to create a new notebook widget.
notebook = gtk.Notebook() |
Once the notebook has been created, there are a number of methods that operate on the notebook widget. Let's look at them individually.
The first one we will look at is how to position the page indicators. These page indicators or "tabs" as they are referred to, can be positioned in four ways: top, bottom, left, or right.
notebook.set_tab_pos(pos) |
pos will be one of the following, which are pretty self explanatory:
POS_LEFT POS_RIGHT POS_TOP POS_BOTTOM |
POS_TOP is the default.
Next we will look at how to add pages to the notebook. There are three ways to add pages to a NoteBook. Let's look at the first two together as they are quite similar.
notebook.append_page(child, tab_label) notebook.prepend_page(child, tab_label) |
These methods add pages to the notebook by inserting them from the back of the notebook (append), or the front of the notebook (prepend). child is the widget that is placed within the notebook page, and tab_label is the label for the page being added. The child widget must be created separately, and is typically a set of options setup within one of the other container widgets, such as a table.
The final method for adding a page to the notebook contains all of the properties of the previous two, but it allows you to specify what position you want the page to be in the notebook.
notebook.insert_page(child, tab_label, position) |
The parameters are the same as append() and prepend() except it contains an extra parameter, position. This parameter is used to specify what place this page will be inserted into; the first page having position zero.
Now that we know how to add a page, lets see how we can remove a page from the notebook.
notebook.remove_page(page_num) |
This method takes the page specified by page_num and removes it from the widget pointed to by notebook.
To find out what the current page is in a notebook use the method:
page = notebook.get_current_page() |
These next two methods are simple calls to move the notebook page forward or backward. Simply provide the respective method call with the notebook widget you wish to operate on.
notebook.next_page() notebook.prev_page() |
Note
When the notebook is currently on the last page, and next_page() is called, nothing happens. Likewise, if the notebook is on the first page, and prev_page() is called, nothing happens.
This next method sets the "active" page. If you wish the notebook to be opened to page 5 for example, you would use this method. Without using this method, the notebook defaults to displaying the first page.
notebook.set_current_page(page_num) |
The next two methods add or remove the notebook page tabs and the notebook border respectively.
notebook.set_show_tabs(show_tabs) notebook.set_show_border(show_border) |
The next method is useful when the you have a large number of pages, and the tabs don't fit on the page. It allows the tabs to be scrolled through using two arrow buttons.
notebook.set_scrollable(scrollable) |
show_tabs, show_border and scrollable can be either TRUE or FALSE.

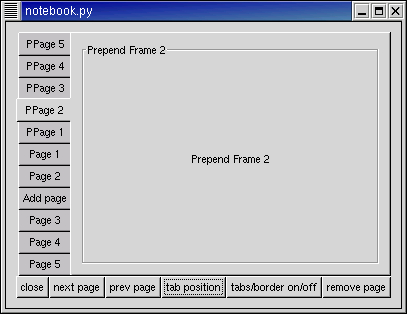

Now let's look at an example. The notebook.py program creates a window with a notebook and six buttons. The notebook contains 11 pages, added in three different ways, appended, inserted, and prepended. The buttons allow you rotate the tab positions, add or remove the tabs and border, remove a page, change pages in both a forward and backward manner, and exit the program. Figure 10.9, “Notebook Example” illustrates the program display:
The source code for notebook.py is:
1 #!/usr/bin/env python
2
3 # example notebook.py
4
5 import pygtk
6 pygtk.require('2.0')
7 import gtk
8
9 class NotebookExample:
10 # This method rotates the position of the tabs
11 def rotate_book(self, button, notebook):
12 notebook.set_tab_pos((notebook.get_tab_pos()+1) %4)
13
14 # Add/Remove the page tabs and the borders
15 def tabsborder_book(self, button, notebook):
16 tval = False
17 bval = False
18 if self.show_tabs == False:
19 tval = True
20 if self.show_border == False:
21 bval = True
22
23 notebook.set_show_tabs(tval)
24 self.show_tabs = tval
25 notebook.set_show_border(bval)
26 self.show_border = bval
27
28 # Remove a page from the notebook
29 def remove_book(self, button, notebook):
30 page = notebook.get_current_page()
31 notebook.remove_page(page)
32 # Need to refresh the widget --
33 # This forces the widget to redraw itself.
34 notebook.queue_draw_area(0,0,-1,-1)
35
36 def delete(self, widget, event=None):
37 gtk.main_quit()
38 return False
39
40 def __init__(self):
41 window = gtk.Window(gtk.WINDOW_TOPLEVEL)
42 window.connect("delete_event", self.delete)
43 window.set_border_width(10)
44
45 table = gtk.Table(3,6,False)
46 window.add(table)
47
48 # Create a new notebook, place the position of the tabs
49 notebook = gtk.Notebook()
50 notebook.set_tab_pos(gtk.POS_TOP)
51 table.attach(notebook, 0,6,0,1)
52 notebook.show()
53 self.show_tabs = True
54 self.show_border = True
55
56 # Let's append a bunch of pages to the notebook
57 for i in range(5):
58 bufferf = "Append Frame %d" % (i+1)
59 bufferl = "Page %d" % (i+1)
60
61 frame = gtk.Frame(bufferf)
62 frame.set_border_width(10)
63 frame.set_size_request(100, 75)
64 frame.show()
65
66 label = gtk.Label(bufferf)
67 frame.add(label)
68 label.show()
69
70 label = gtk.Label(bufferl)
71 notebook.append_page(frame, label)
72
73 # Now let's add a page to a specific spot
74 checkbutton = gtk.CheckButton("Check me please!")
75 checkbutton.set_size_request(100, 75)
76 checkbutton.show ()
77
78 label = gtk.Label("Add page")
79 notebook.insert_page(checkbutton, label, 2)
80
81 # Now finally let's prepend pages to the notebook
82 for i in range(5):
83 bufferf = "Prepend Frame %d" % (i+1)
84 bufferl = "PPage %d" % (i+1)
85
86 frame = gtk.Frame(bufferf)
87 frame.set_border_width(10)
88 frame.set_size_request(100, 75)
89 frame.show()
90
91 label = gtk.Label(bufferf)
92 frame.add(label)
93 label.show()
94
95 label = gtk.Label(bufferl)
96 notebook.prepend_page(frame, label)
97
98 # Set what page to start at (page 4)
99 notebook.set_current_page(3)
100
101 # Create a bunch of buttons
102 button = gtk.Button("close")
103 button.connect("clicked", self.delete)
104 table.attach(button, 0,1,1,2)
105 button.show()
106
107 button = gtk.Button("next page")
108 button.connect("clicked", lambda w: notebook.next_page())
109 table.attach(button, 1,2,1,2)
110 button.show()
111
112 button = gtk.Button("prev page")
113 button.connect("clicked", lambda w: notebook.prev_page())
114 table.attach(button, 2,3,1,2)
115 button.show()
116
117 button = gtk.Button("tab position")
118 button.connect("clicked", self.rotate_book, notebook)
119 table.attach(button, 3,4,1,2)
120 button.show()
121
122 button = gtk.Button("tabs/border on/off")
123 button.connect("clicked", self.tabsborder_book, notebook)
124 table.attach(button, 4,5,1,2)
125 button.show()
126
127 button = gtk.Button("remove page")
128 button.connect("clicked", self.remove_book, notebook)
129 table.attach(button, 5,6,1,2)
130 button.show()
131
132 table.show()
133 window.show()
134
135 def main():
136 gtk.main()
137 return 0
138
139 if __name__ == "__main__":
140 NotebookExample()
141 main()
|
I hope this helps you on your way with creating notebooks for your PyGTK applications.
